Electronic Patient Bed, 2 Motors

VIENS 100

VIENS 100

Electronic Patient Bed, 2 Motors

•    2 Motors with Linear Motors
•    Electronic backrest and footrest adjusments,
•    Fowler and Vascular positions
•    Auto Contour adjustment
•    Patient evacuation position
•    Hand Control Unit
•    Siderail mechanism parts of the bed with special shock absorbers for protection against sudden ups and strokes hidden in the mechanism
•    4-compartment, easy to clean removable mattress platform
•    Polypropilen Siderails
•    Removable Polypropilen Head and Foot Boards
•    Manually adjustable footrest
•    Urine bag hooks on both sides
•    Serum hanger slots in four corners
•    Protective plastic corner bumpers
•    Manual CPR for backrest
•    360⁰ swivel 125 mm lockable castors
•    1 height adjustable IV Pole
•    X-RAY cassette holder with integrated backrest (Optional)
•    Metal parts electrostatic powder coating
•    Antistatic grounding and equipotential component for patient safety in bed
•    Angle Indicators for backrest Angle
•    Trendelenburg position with Gas Spring (Optional)


  • Product Images

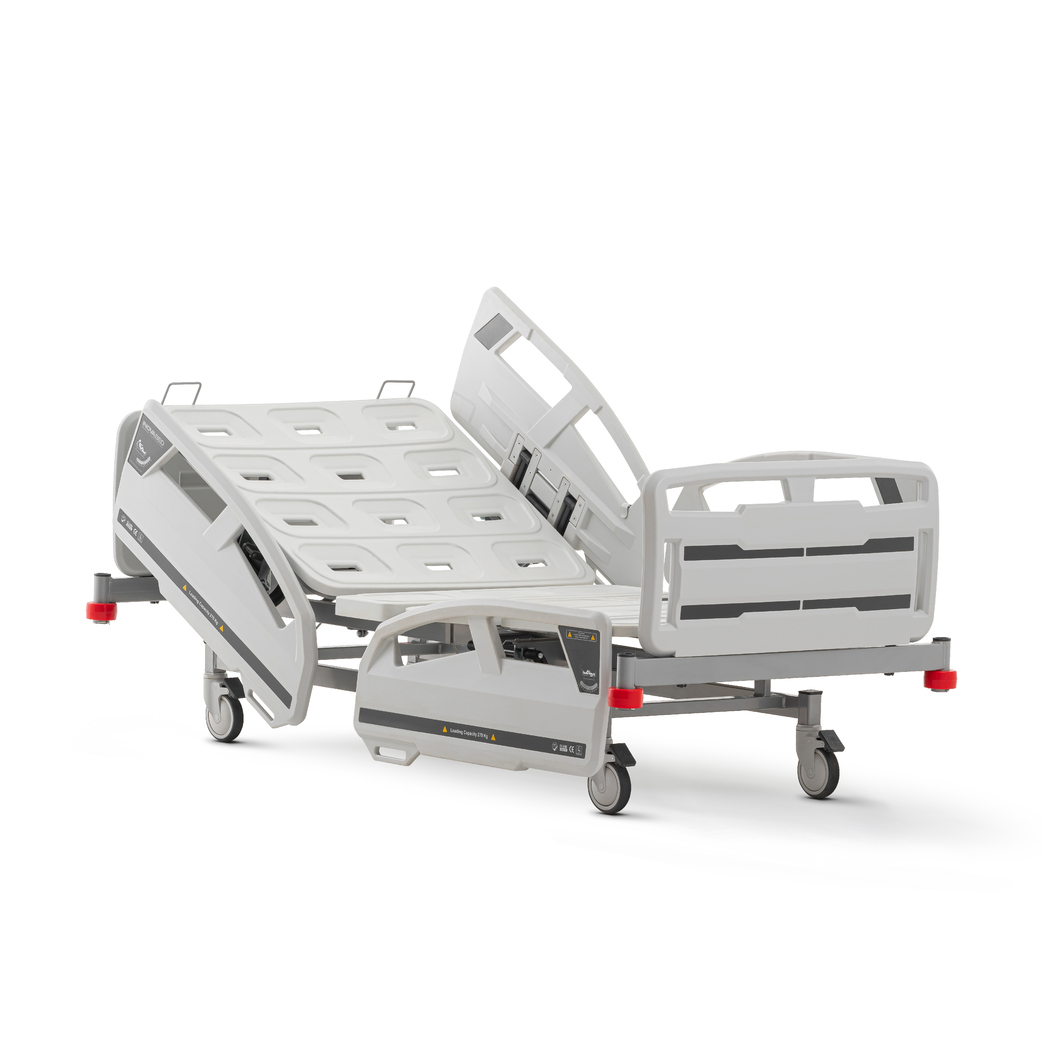

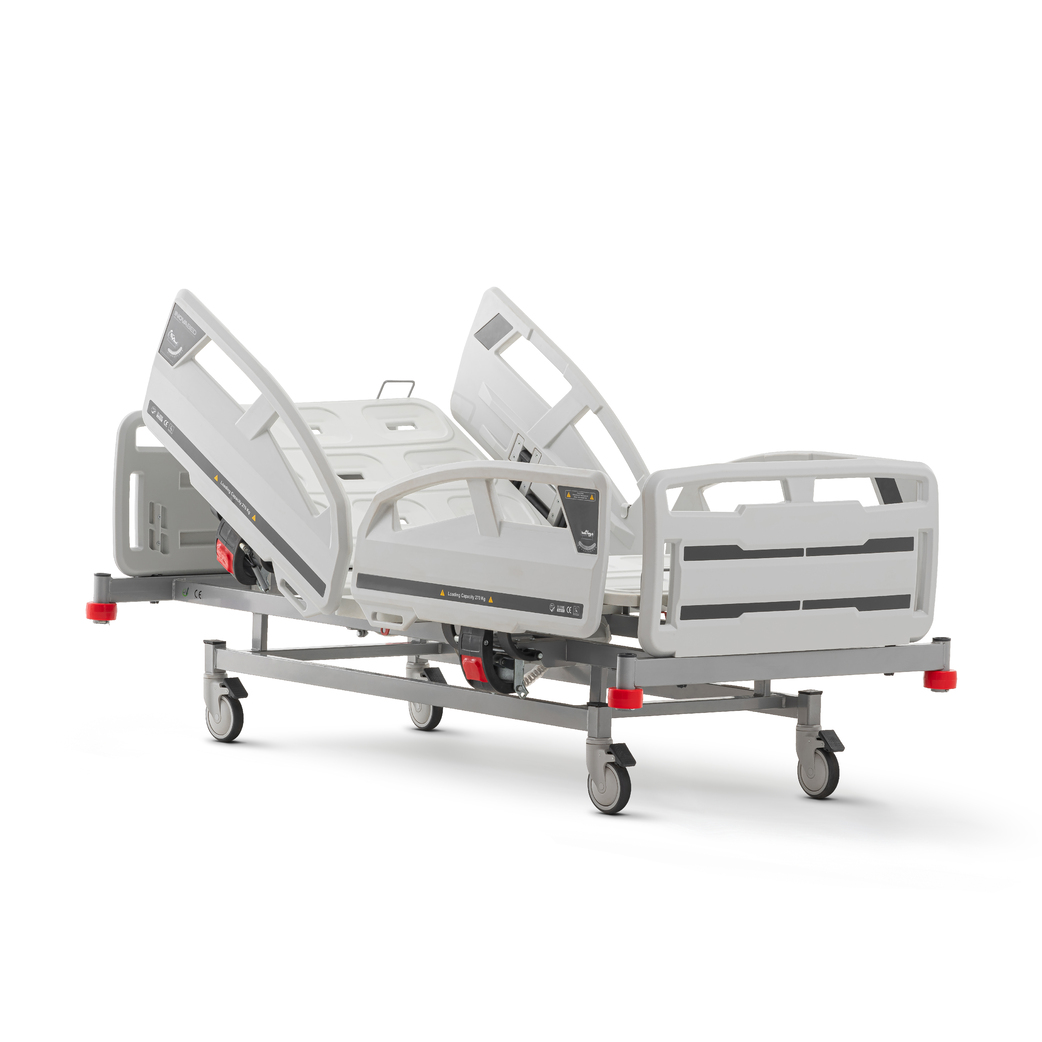

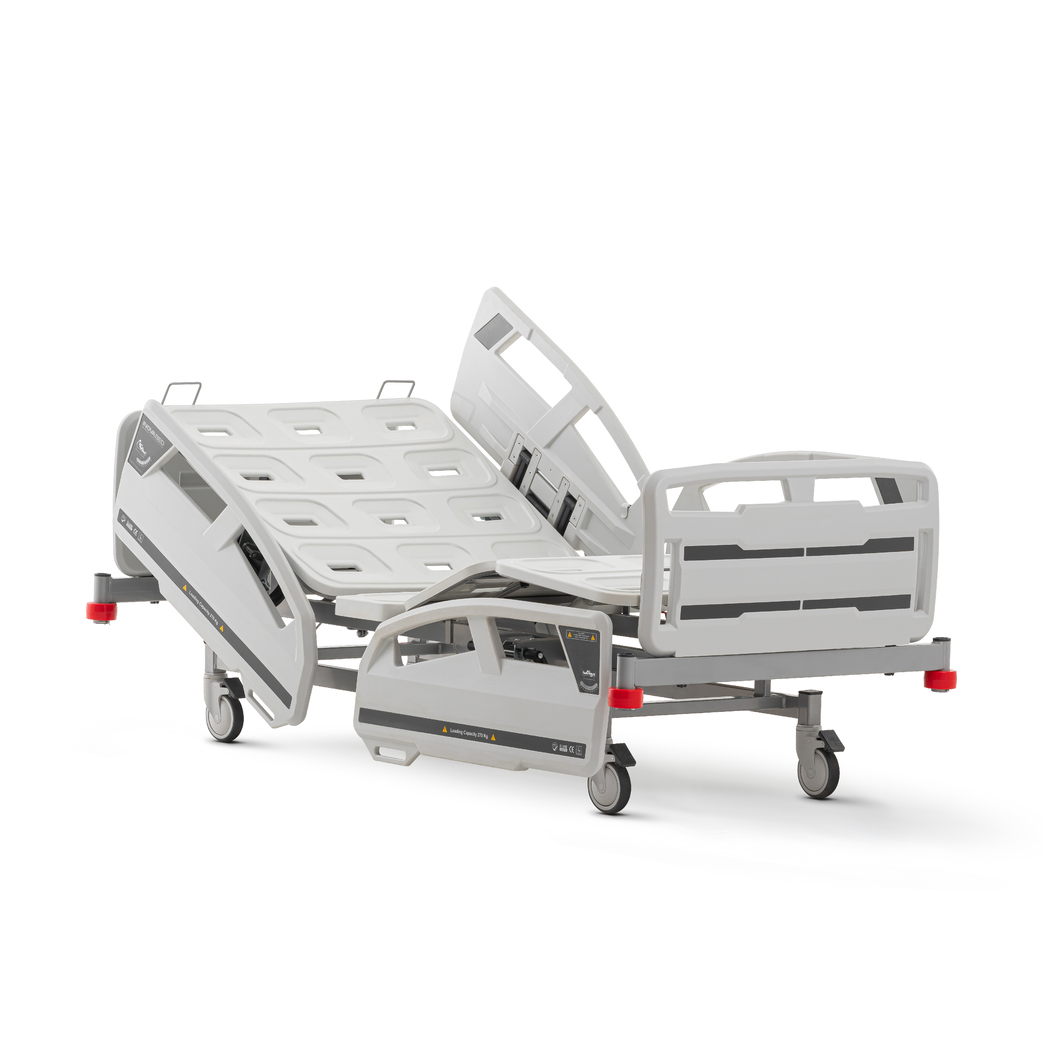

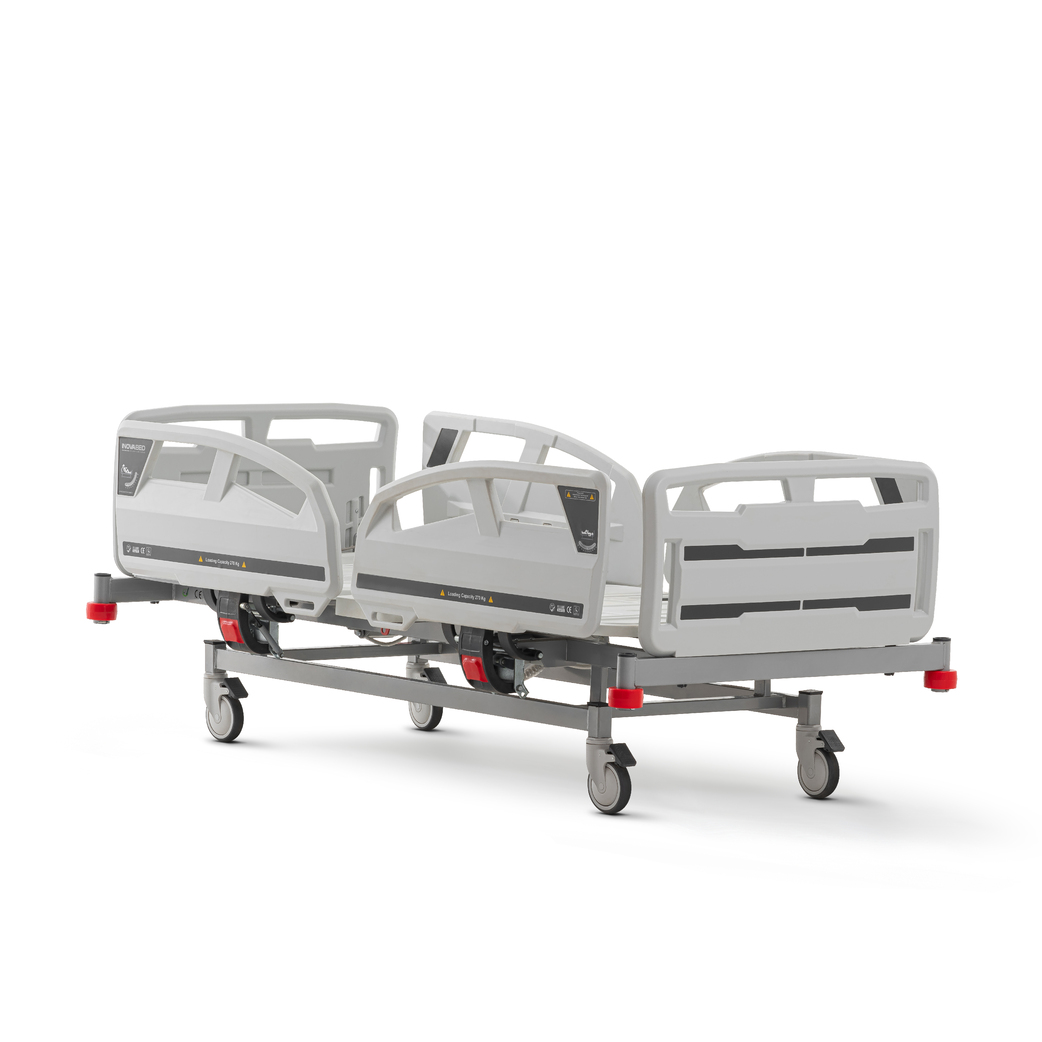

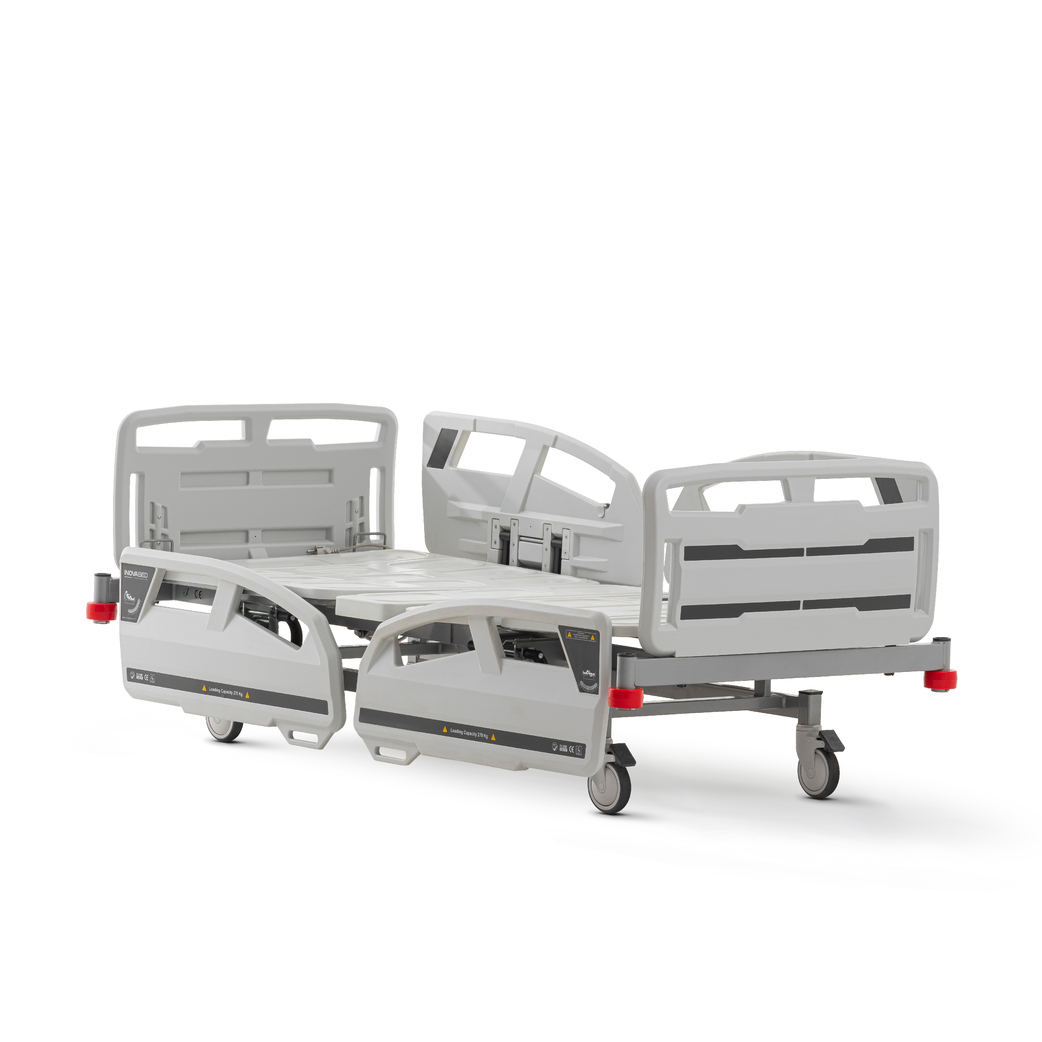

    Electronic Patient Bed, 2 Motors
    Electronic Patient Bed, 2 Motors
    Electronic Patient Bed, 2 Motors
    Electronic Patient Bed, 2 Motors
  • Standard Details

    •    2 Motors with Linear Motors
    •    Electronic backrest and footrest adjusments,
    •    Fowler and Vascular positions
    •    Auto Contour adjustment
    •    Patient evacuation position
    •    Hand Control Unit
    •    Siderail mechanism parts of the bed with special shock absorbers for protection against sudden ups and strokes hidden in the mechanism
    •    4-compartment, easy to clean removable mattress platform
    •    Polypropilen Siderails
    •    Removable Polypropilen Head and Foot Boards
    •    Manually adjustable footrest
    •    Urine bag hooks on both sides
    •    Serum hanger slots in four corners
    •    Protective plastic corner bumpers
    •    Manual CPR for backrest
    •    360⁰ swivel 125 mm lockable castors
    •    1 height adjustable IV Pole
    •    X-RAY cassette holder with integrated backrest (Optional)
    •    Metal parts electrostatic powder coating
    •    Antistatic grounding and equipotential component for patient safety in bed
    •    Angle Indicators for backrest Angle
    •    Trendelenburg position with Gas Spring (Optional)


  • Technicial Details

    External Dimensions : 222 x 99,5 cm

    Mattress Platform Dimensions : 195 x 85 cm

    Minimum Height : 34,5 cm (+1 cm)

    Maximum Height : 77 cm (+1 cm)

    Backrest Angle : 70°

    Foot-rest Angle : 40°

    Castor Diameter : 125 mm

    Safe Load Capacity : 250 kg
